QA Ticket Resolution Log #2 12 / 12 RESOLVED

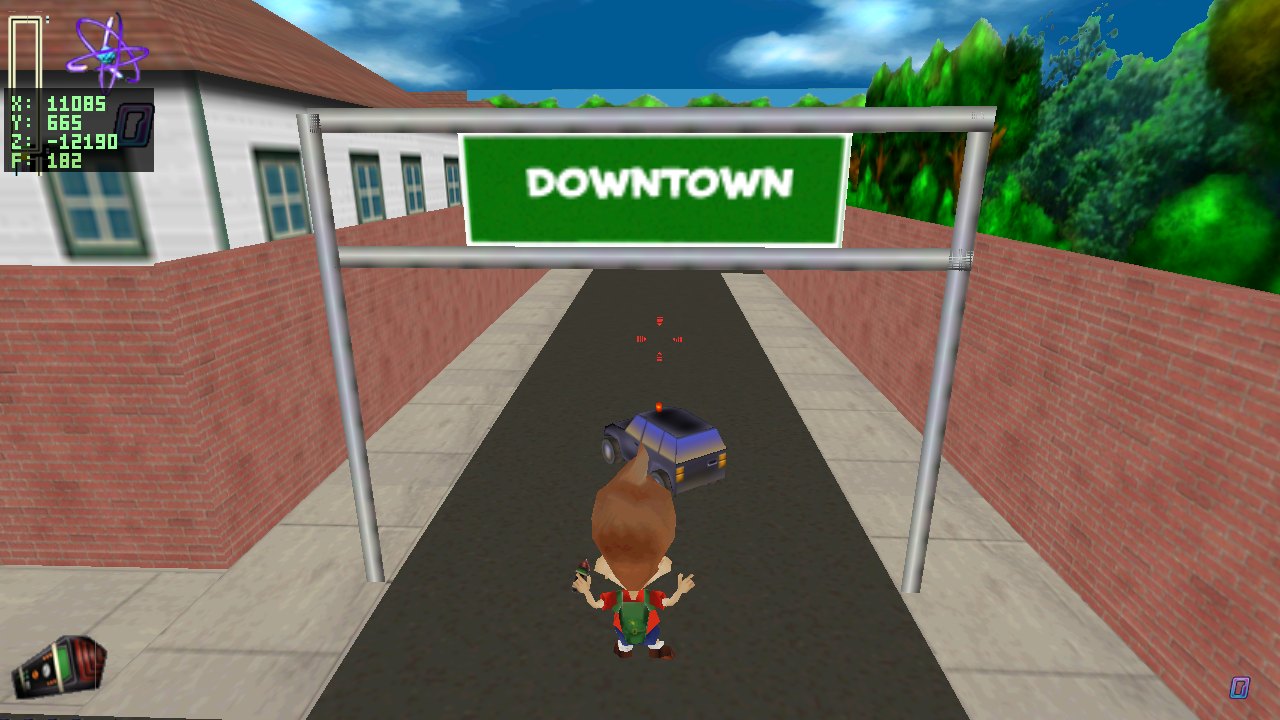

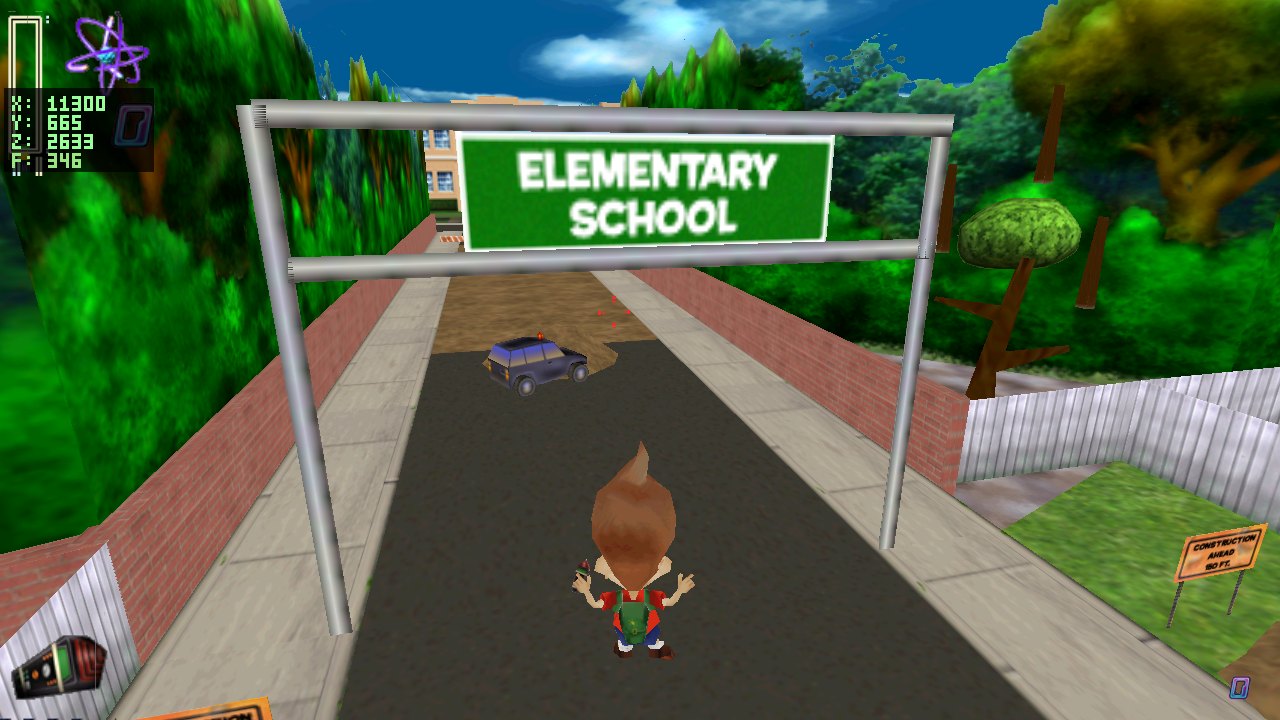

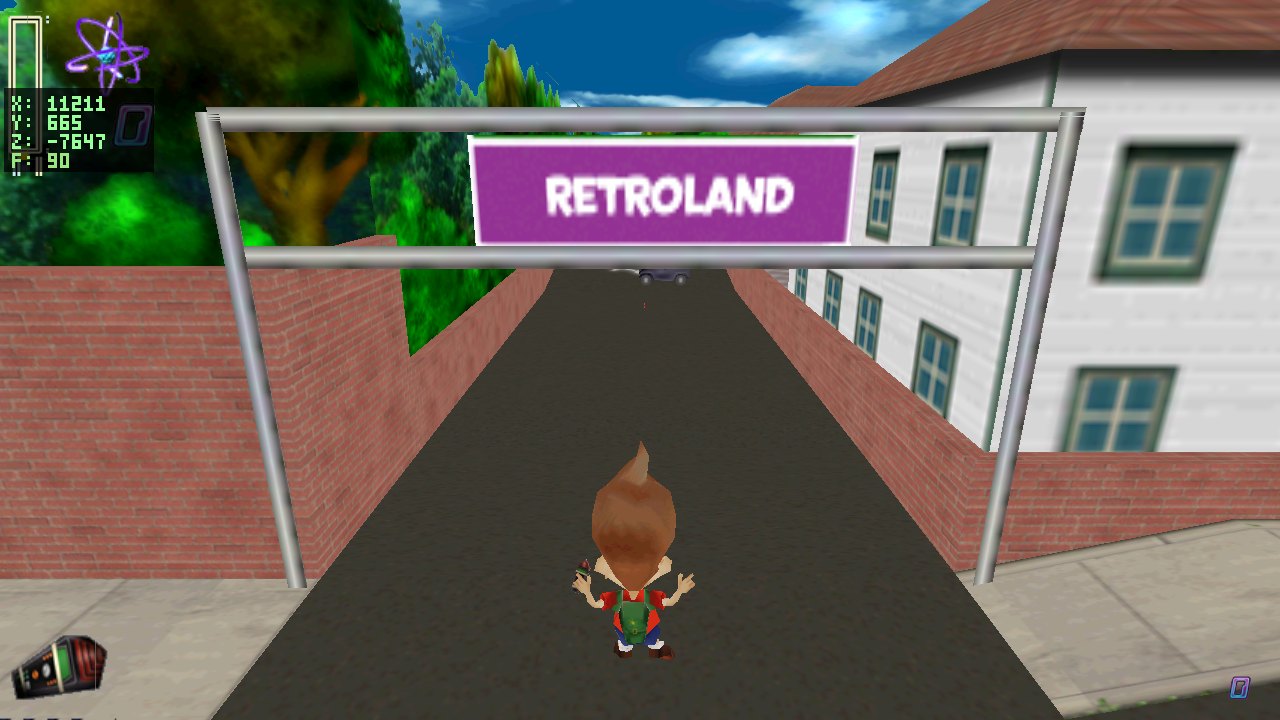

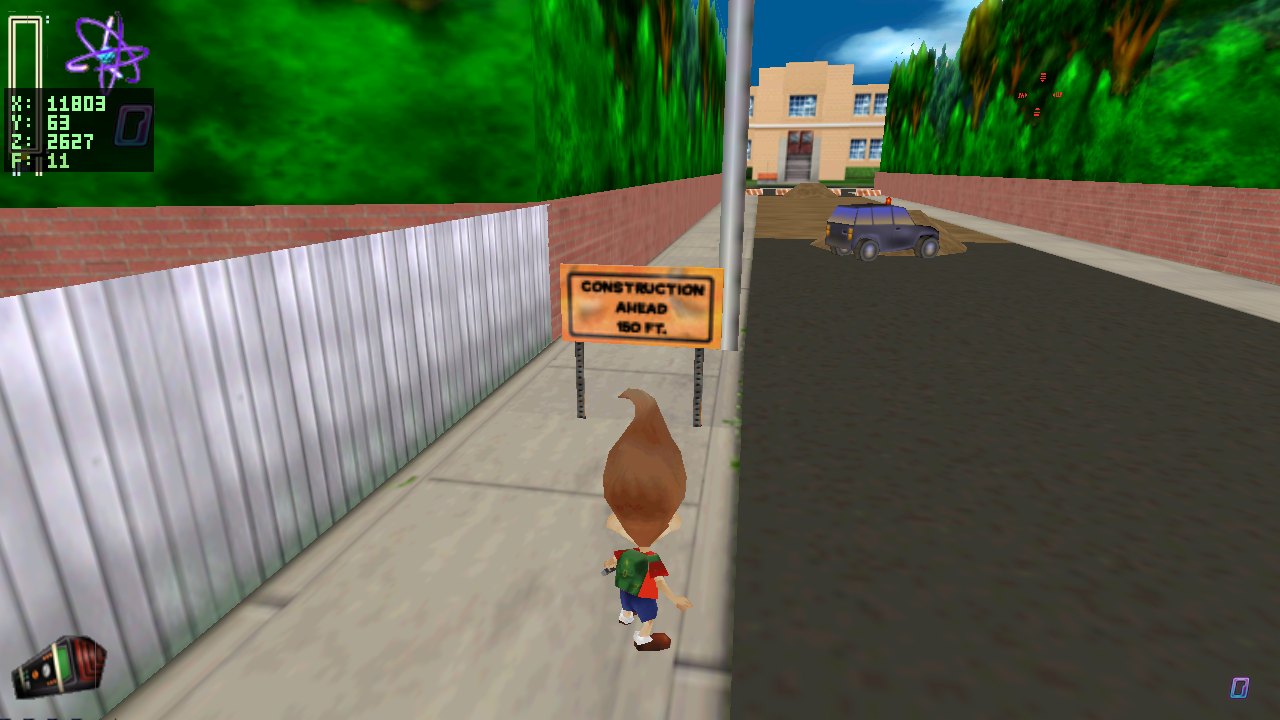

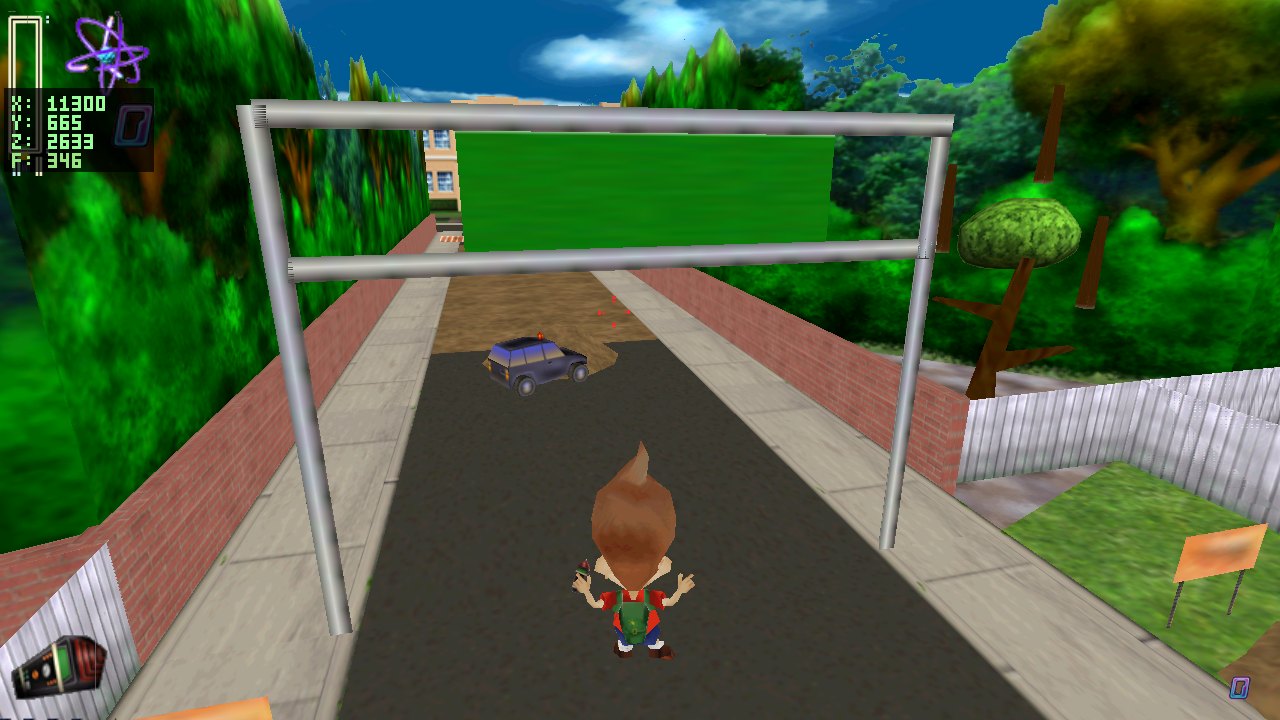

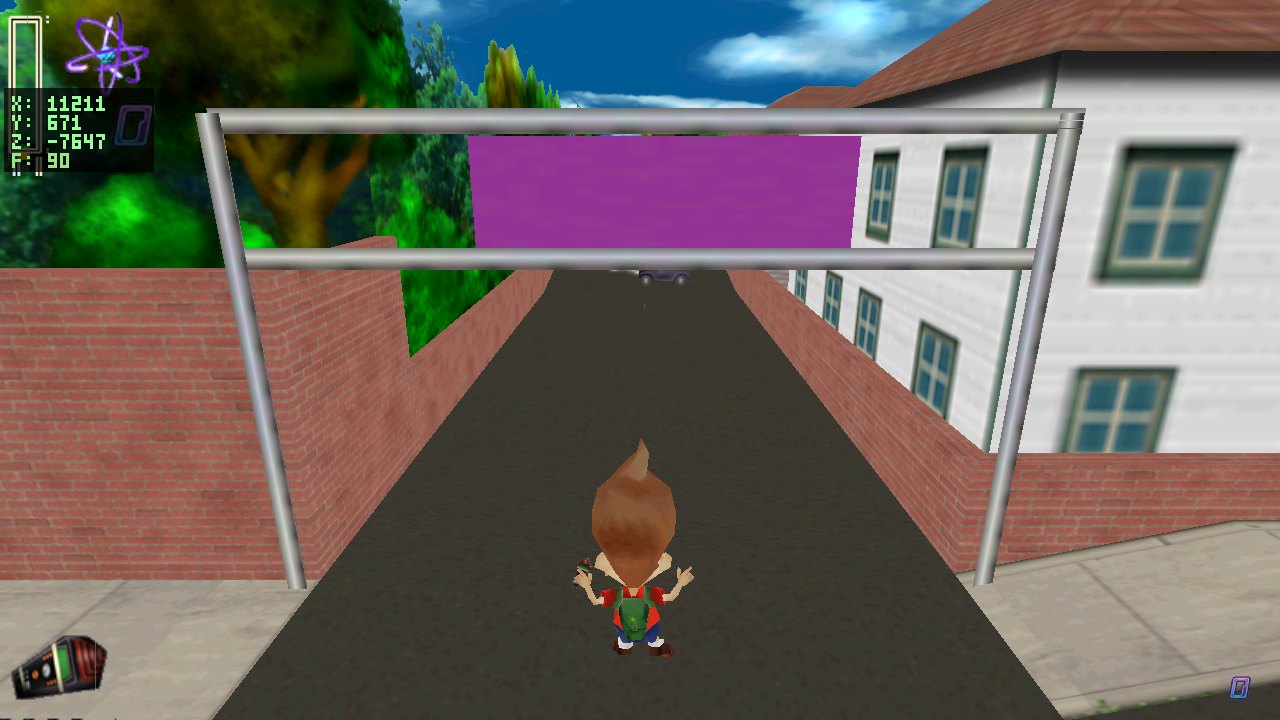

The sign textures were never missing — every GLB already embedded the correct atlas (below). Dumping SIGN01.glb's triangles showed the text quad present with sane UVs… followed by a second copy of the same quad with reversed winding and degenerate UVs (sampling a flat color region). Decoding level1.omt raw confirmed the original authors both: polys 32–33 are the text face, polys 34–35 the same four vertices re-wound as the board's back.

So why did the back face win? The engine draws with glDepthFunc(GL_LEQUAL) (a previous ticket's fix) and no back-face culling — so the later-drawn back face overwrote the text on equal depth. The original engine's source (GarageCube Open Media Toolkit) settles the question: OMediaPipeline back-face culls every polygon in software before submitting — which is exactly why our 4 GB D3D7 capture shows CULLMODE=NONE on 3209 of 3235 draws. The cull happened before D3D ever saw the triangles. A corpus scan found the per-poly om3pf_TwoSided exemption flag unused in all 5,255 level1 polys: two-sided surfaces are always baked as explicit twin polys, so GL back-face culling is a loss-free reproduction.

The old resolver row's own comment said objects.omt id-16 — but bound Rocket.ASE, which is shape 15. Dumping the objects.omt 3DSh chunk table:

shape 13 SailBoat   shape 14 RocketPad   shape 15 Rocket   shape 16 RideSpin   shape 17 Swing

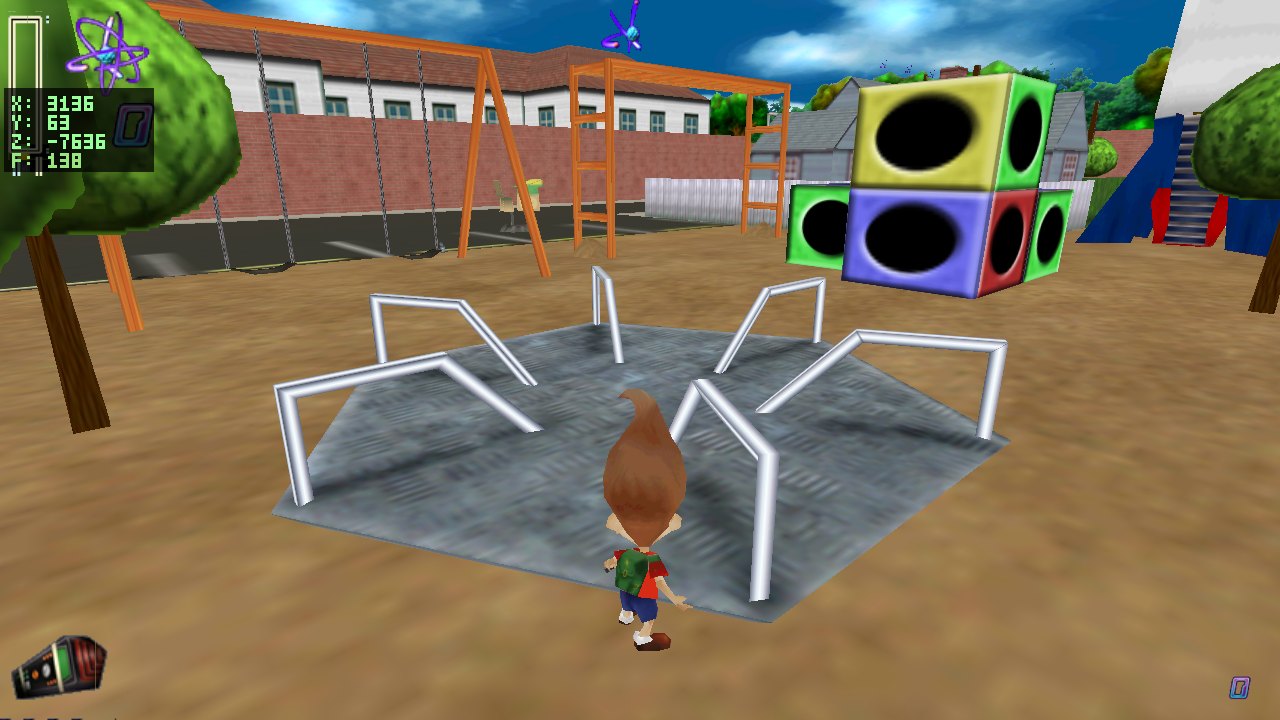

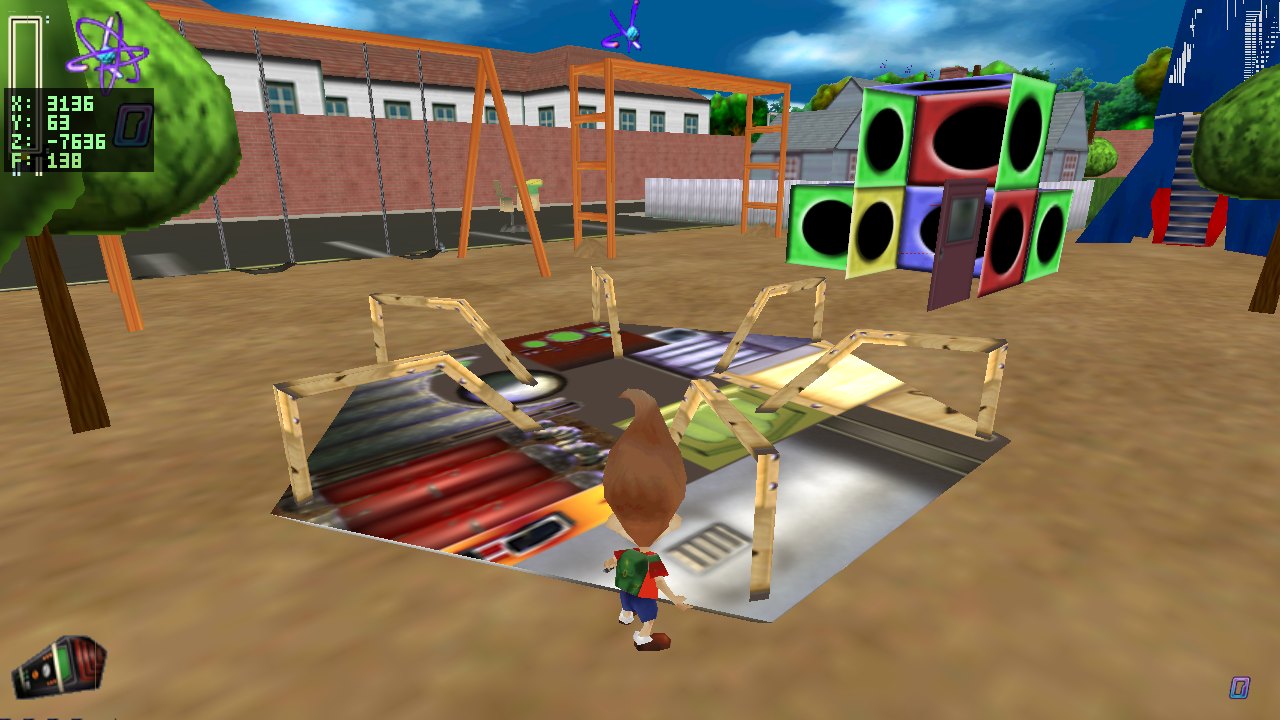

Shape 16 is RideSpin — the playground spinner. The old ASE export of it was also a stale partial read (26 of 85 verts); the toolkit's GLB exporter reads it fully, textured by its authored MetalPlate canvas.

The decomp spec docs/decomp/C3DSwingDoor.md shows the class registers per-instance ASEFile/PNGFile .gam properties. Reading every level's 3SWN rows:

Level1.gam   C3DDOORSWING  blocksdoor.ase   blocksdoor.png
level2a.gam  ldoor         downdoor2a.ase   doorfowl.png
level2a.gam  C3DDOORSWING  door2a.ase       doorfowl.png
Level3.gam   mummydoor     showmedoor.ase   showmedoor.png
level3a.gam  C3DDOORSWING  pyramiddoor1.ase pyramiddoor1.png

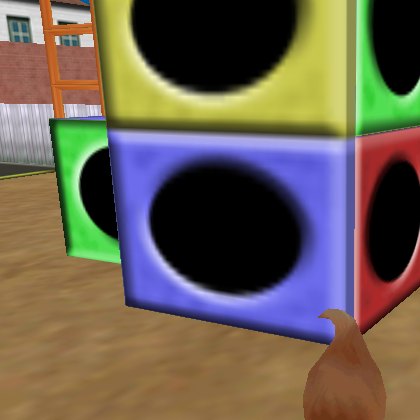

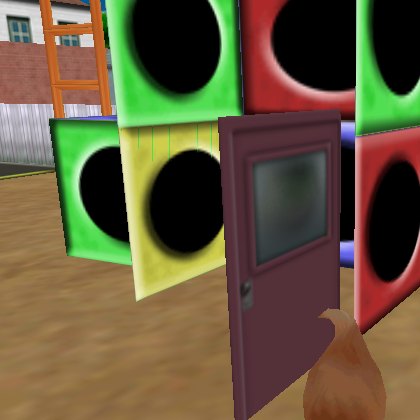

The reporter's "the one in level2a" was literally correct — the hardcoded doorfowl is level2a's door texture. The fix is generic: honor the authored pair, which repairs the level3/3a/3d swing doors too. The picker confirms the new door draws at the reported spot ("name":"3SWN","asset":"blocksdoor.ase"); it's easy to miss visually because BlocksDoor.png is a blocks-pattern texture — a hidden door that blends into the playhouse wall.

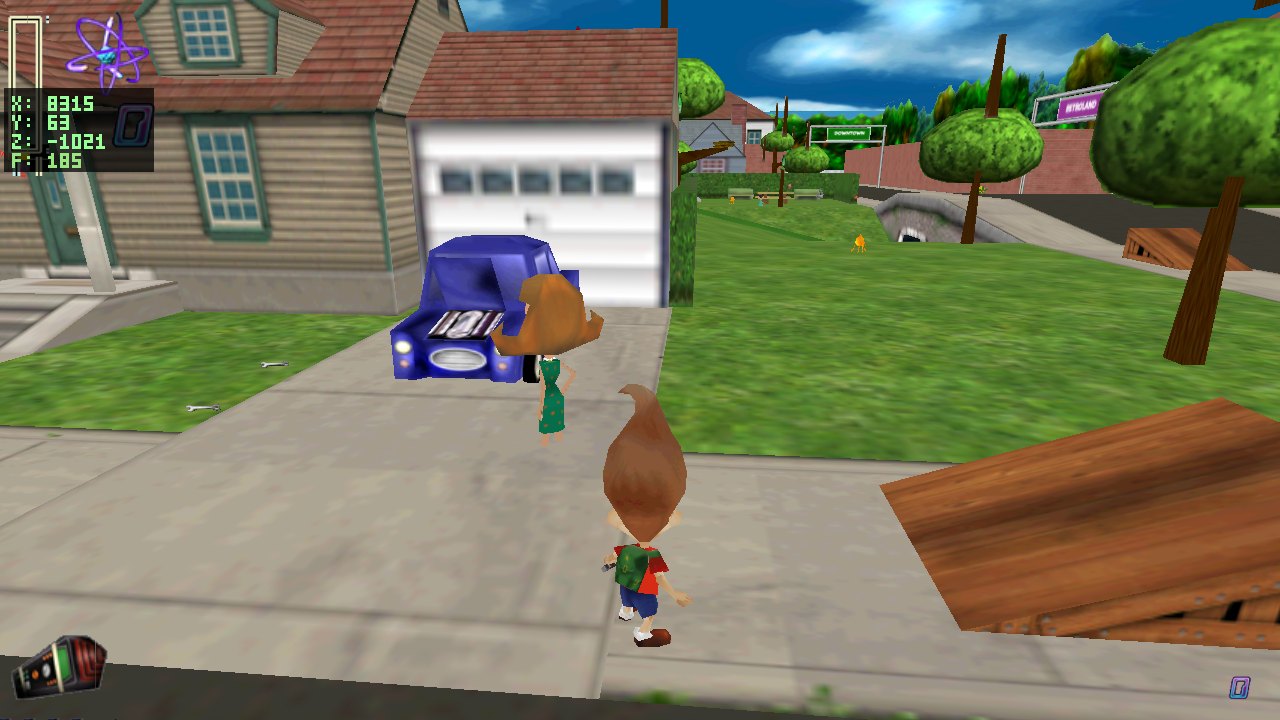

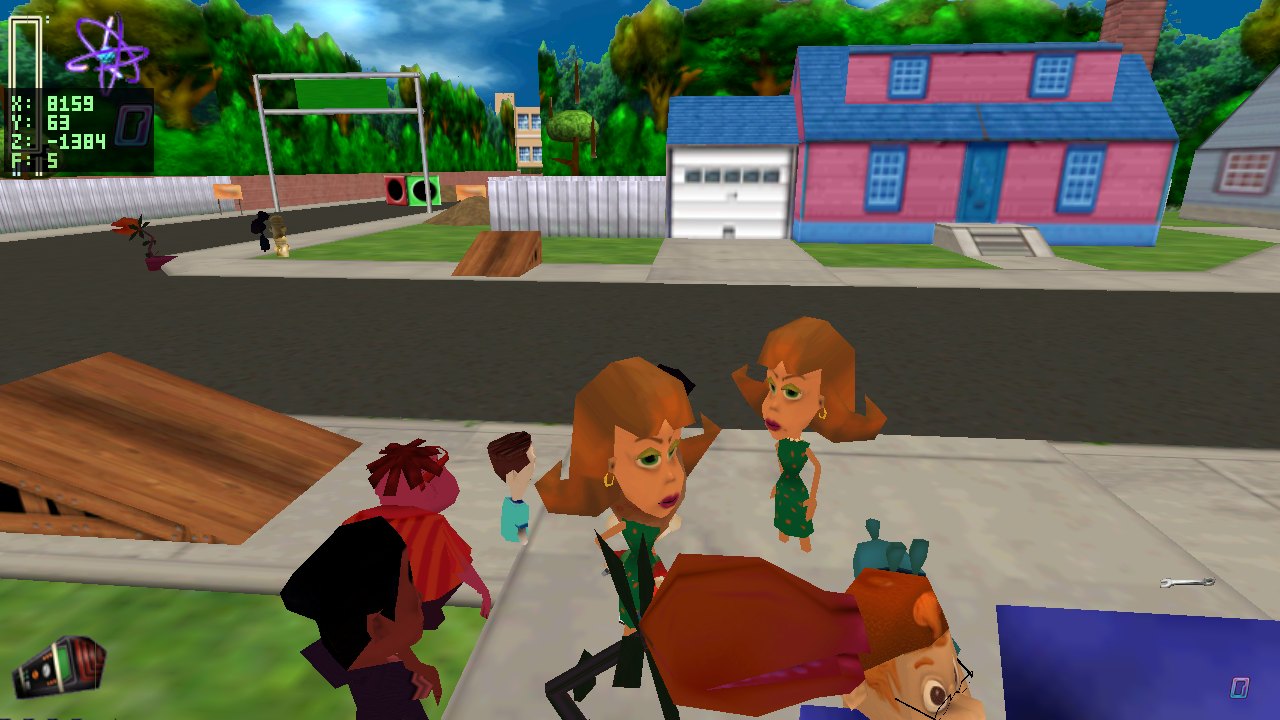

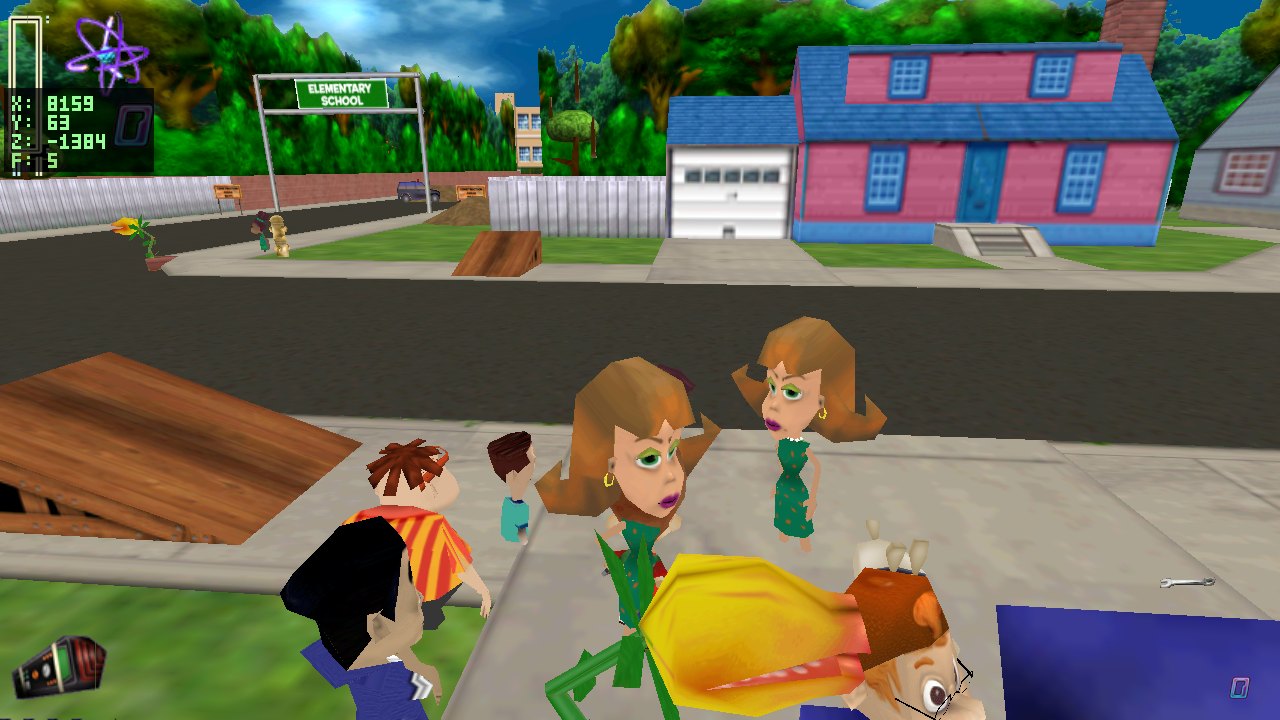

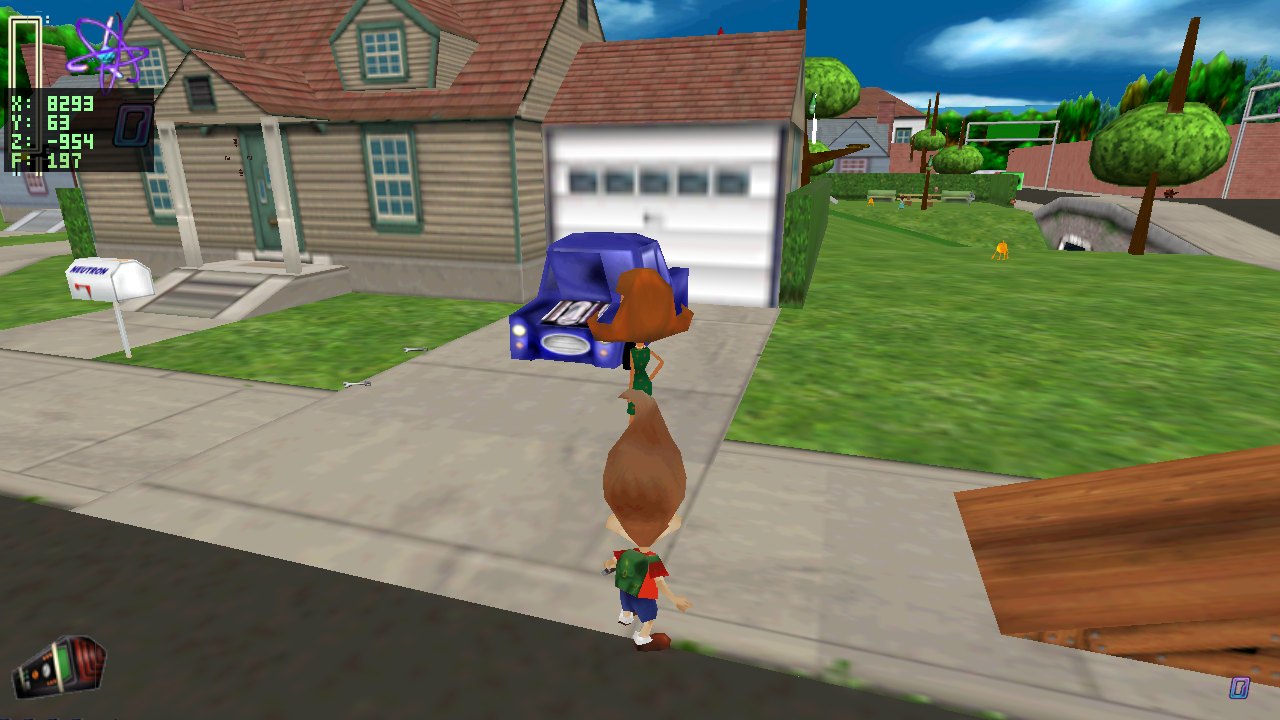

The character ASEs carry 3ds Max viewport colors in *MATERIAL_DIFFUSE:

carlstop.ASE   *MATERIAL_DIFFUSE 0.6471 0.1922 0.3765   (dark magenta)
nickstop.ASE   *MATERIAL_DIFFUSE 0.5373 0.1961 0.1961   (dark red)
judystop.ASE   *MATERIAL_DIFFUSE 0.9255 0.6980 0.4745   (skin tone)

Our renderer multiplied the texture by that color whenever the material's bitmap resolved. The original never does: D3D7's default texture stage modulates the texture by the vertex diffuse (white when the FVF has no color), and material diffuse only enters through lighting — which Phase 12 measured as LIGHTING=OFF for these scenes (build/canon.json). Jimmy escaped only by accident: his bitmap paths never resolved, which routed him through a tint-neutralizing fallback.

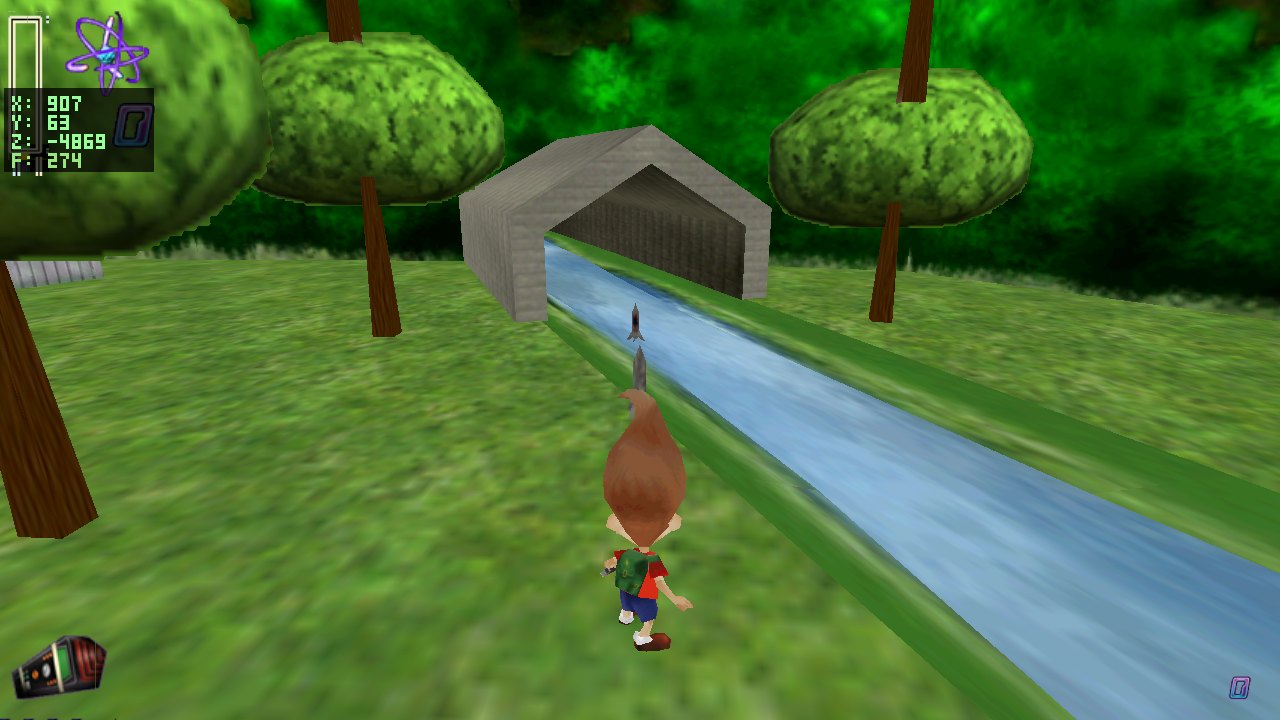

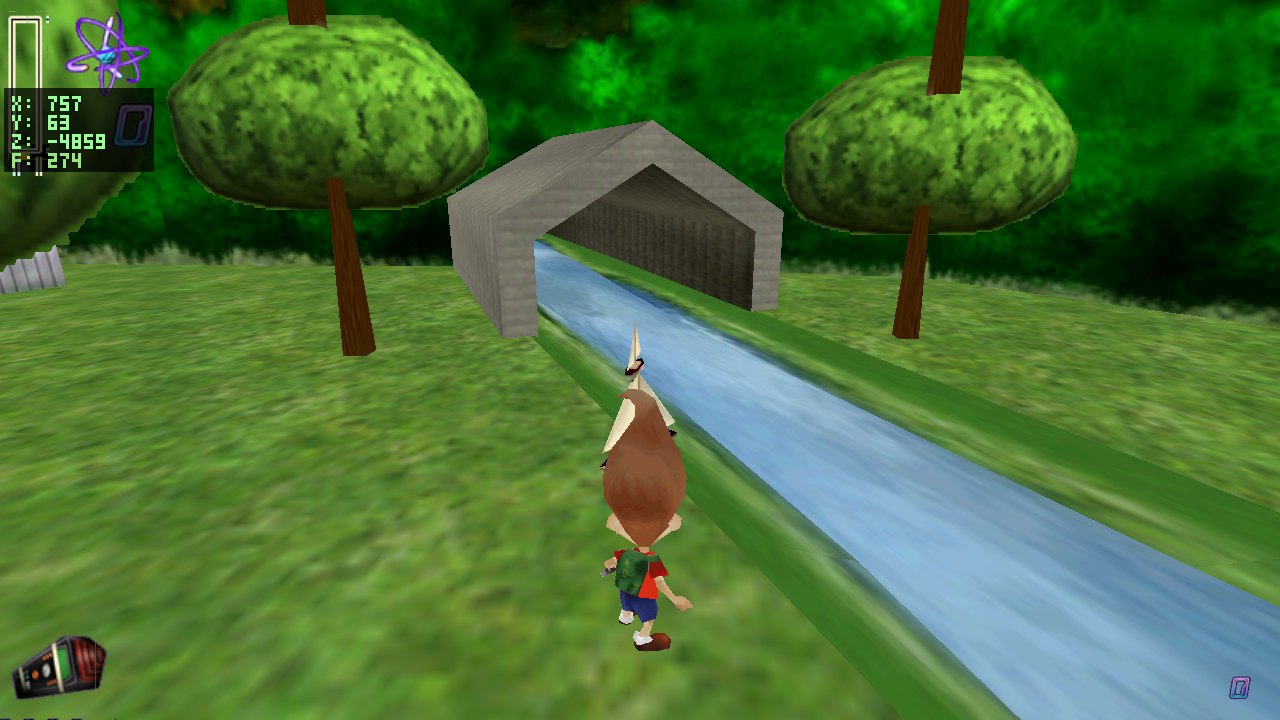

docs/decomp/C3DSailBoat.md already flagged this in its open questions: the class binds objects.omt entry 13 ("SailBoat", canvas 13), but "the current ASE export's material path points at image 0009" — the rocketpad canvas. The export predated the canvas-table fix. The toolkit GLB exporter resolves the canvas correctly:

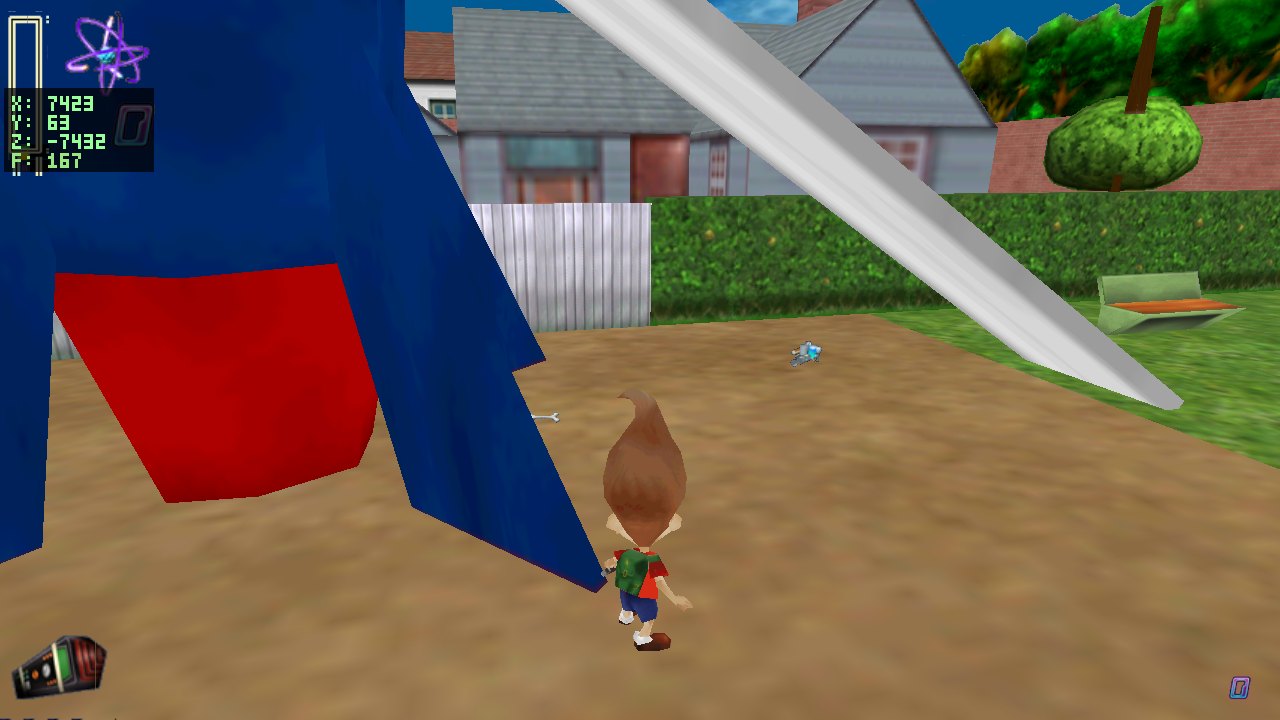

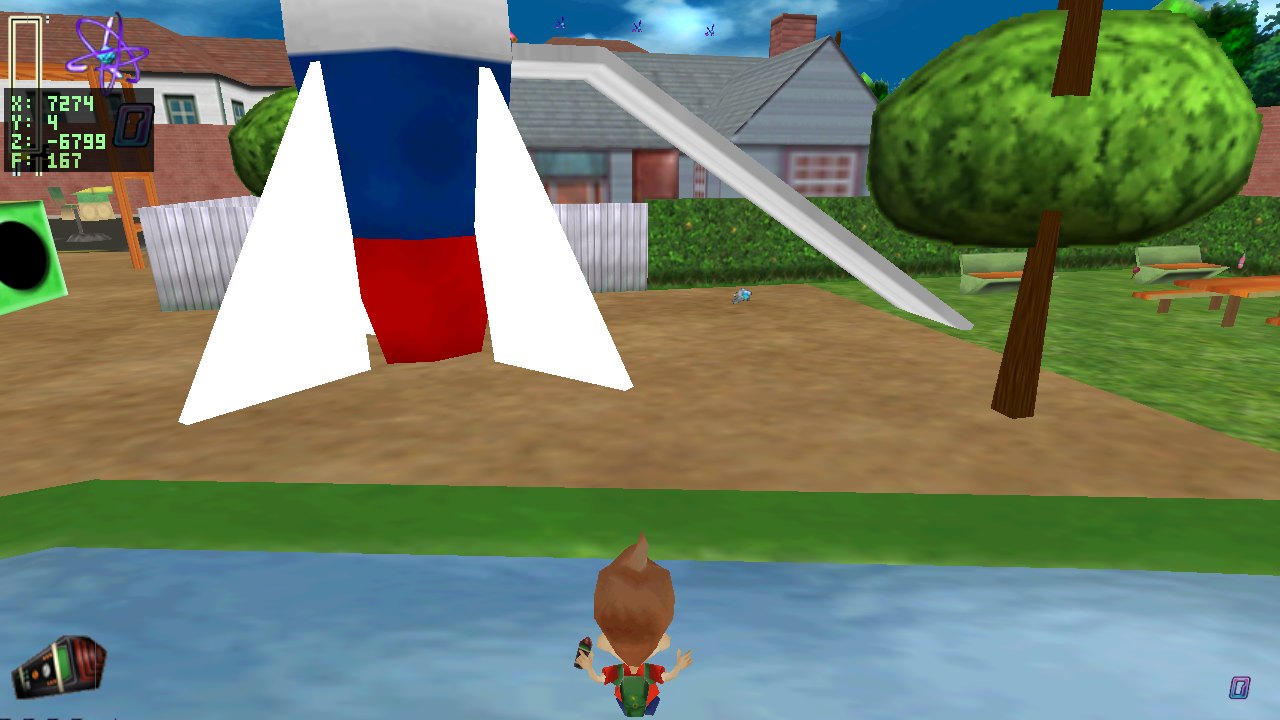

A fun one: the picker names Rocketa.glb, but the big cone is a stack of co-located placements — Rocketa (the striped 14-poly detail mesh, which was fine) inside BLOCK_Rocket03 + BLOCKrockettop, the giant playground rocket. BLOCK_Rocket03 has no material links at all in level1.omt — the OMT pipeline draws it default-material flat white, which is the white rocket the reporter remembers. Our GLB instead wore a capture-derived texture override whose own ground-truth record marked it junk (tex_mse 3736 — matcher noise): a dark billboard texture stretched over the cone read as blue.

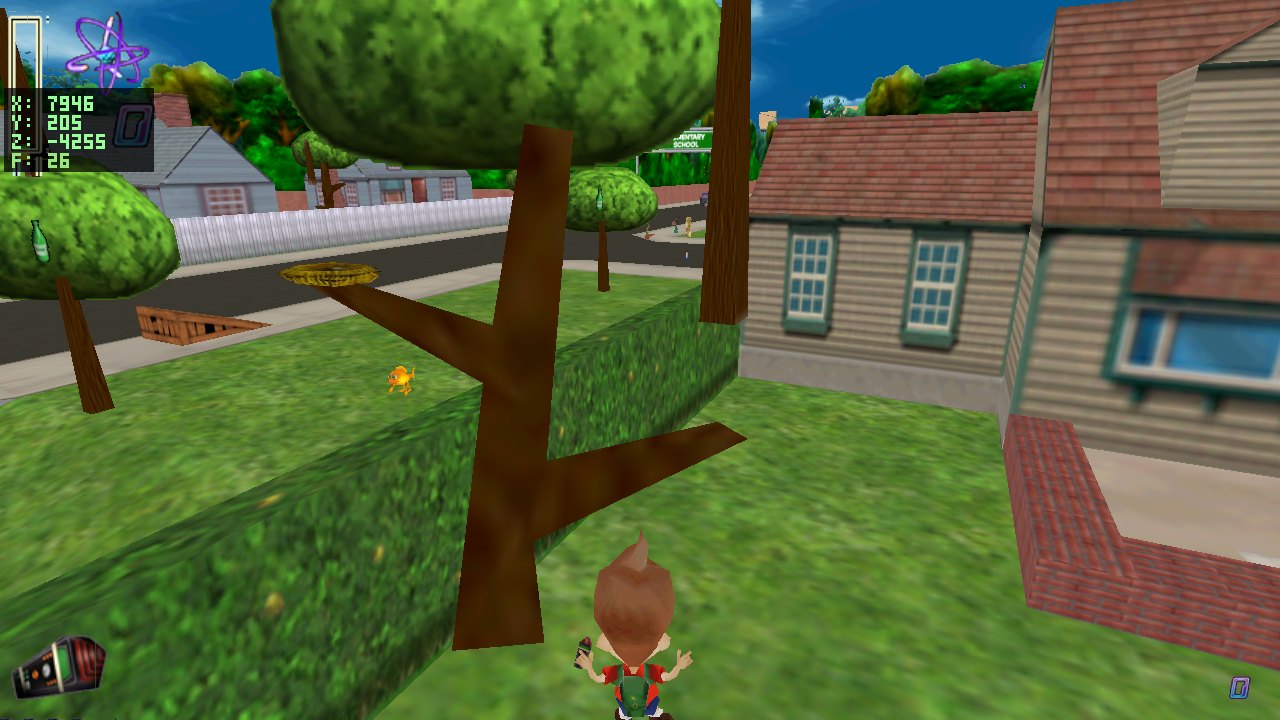

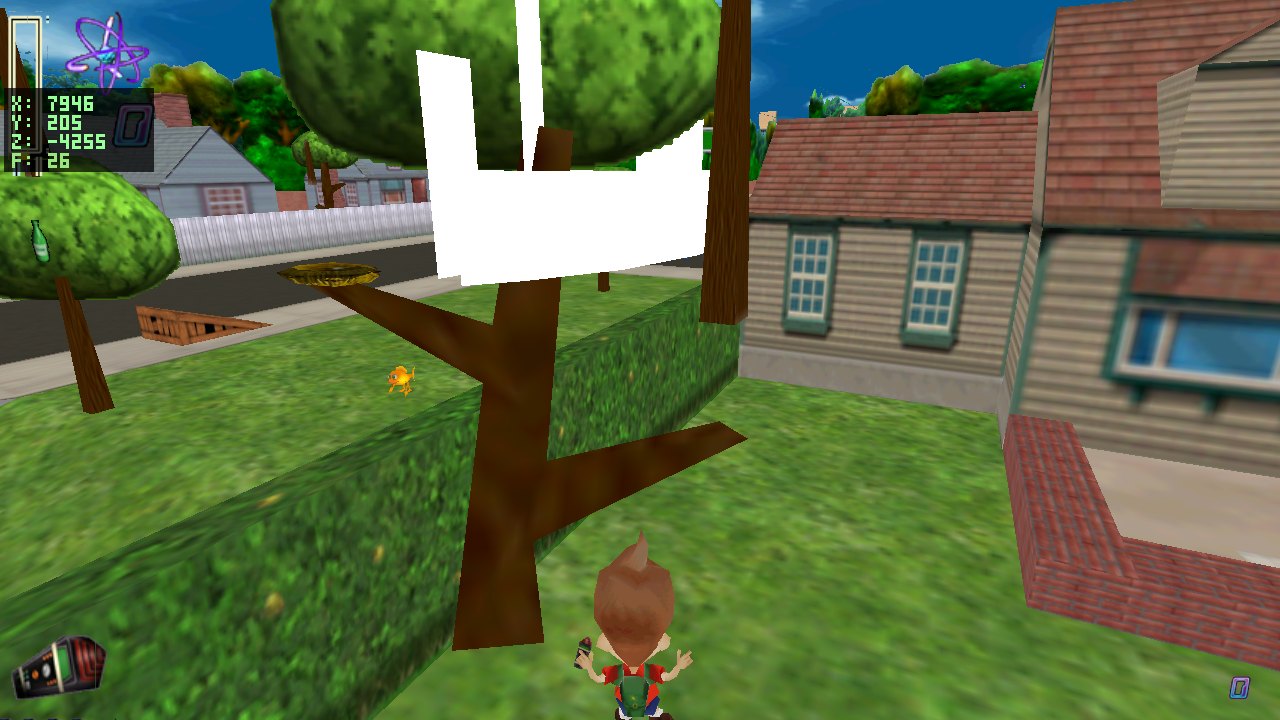

The reporter's instinct was right again. The .gam row authors InitallyActive=0 (the original registrar's own typo) — a quest-spawned pickup that scripting activates later; the original never draws it at boot. Two sibling egg pickups author InitallyActive=1 and remain visible through the per-instance sprite tier (chunk 140 "egg"), replacing the stale tag row that drew an untextured mesh.

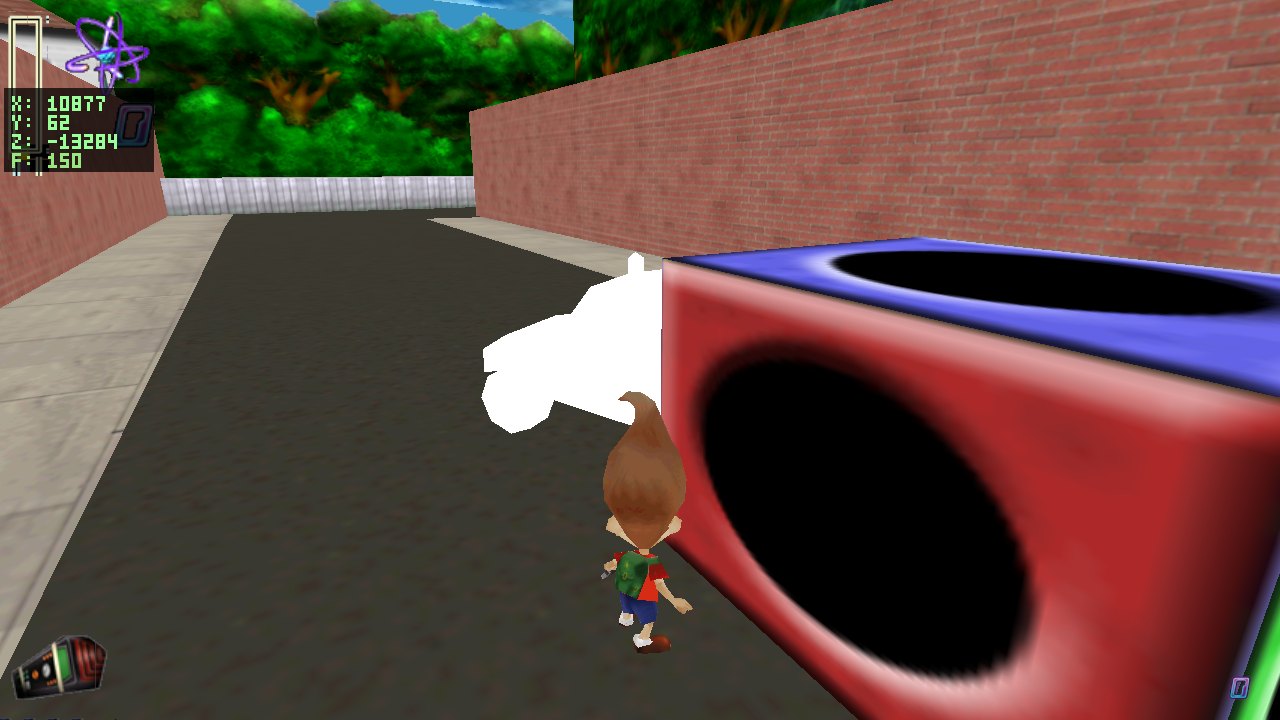

docs/decomp/C3DAISuv.md: the class binds jeep.omt entry 2, and even recorded the suspicion that the entry "may be a non-image chunk or parser gap". The jeep.omt 3DSh table resolves it:

jeep.omt shapes:  (2, 'truck')   (7, 'lawnmower')

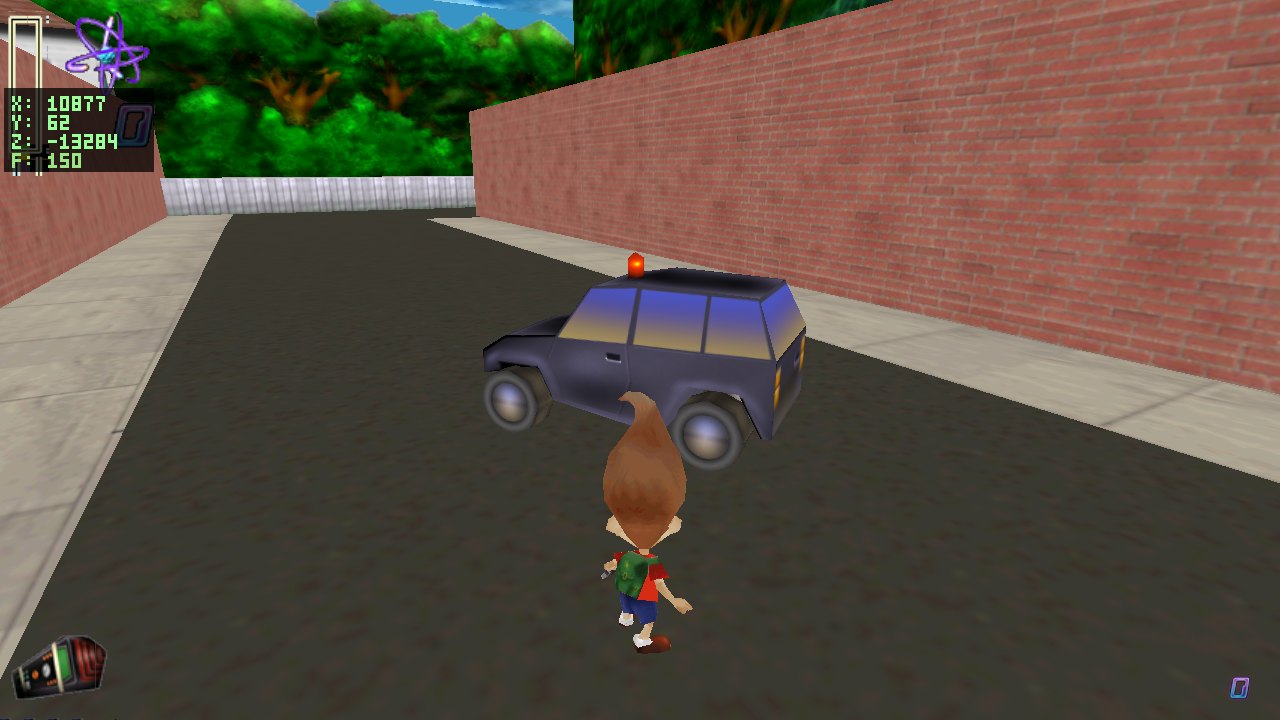

Shape 2 is truck — the resolver had bound shape 7's lawnmower (untextured at that).

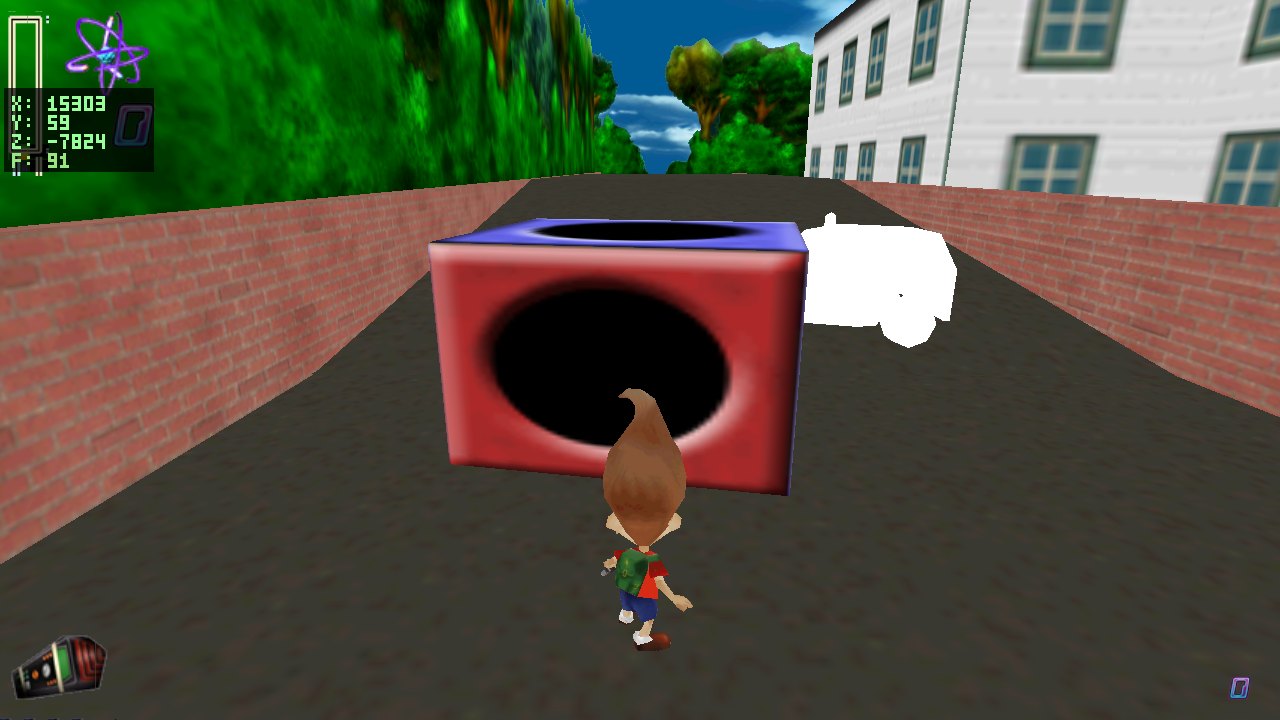

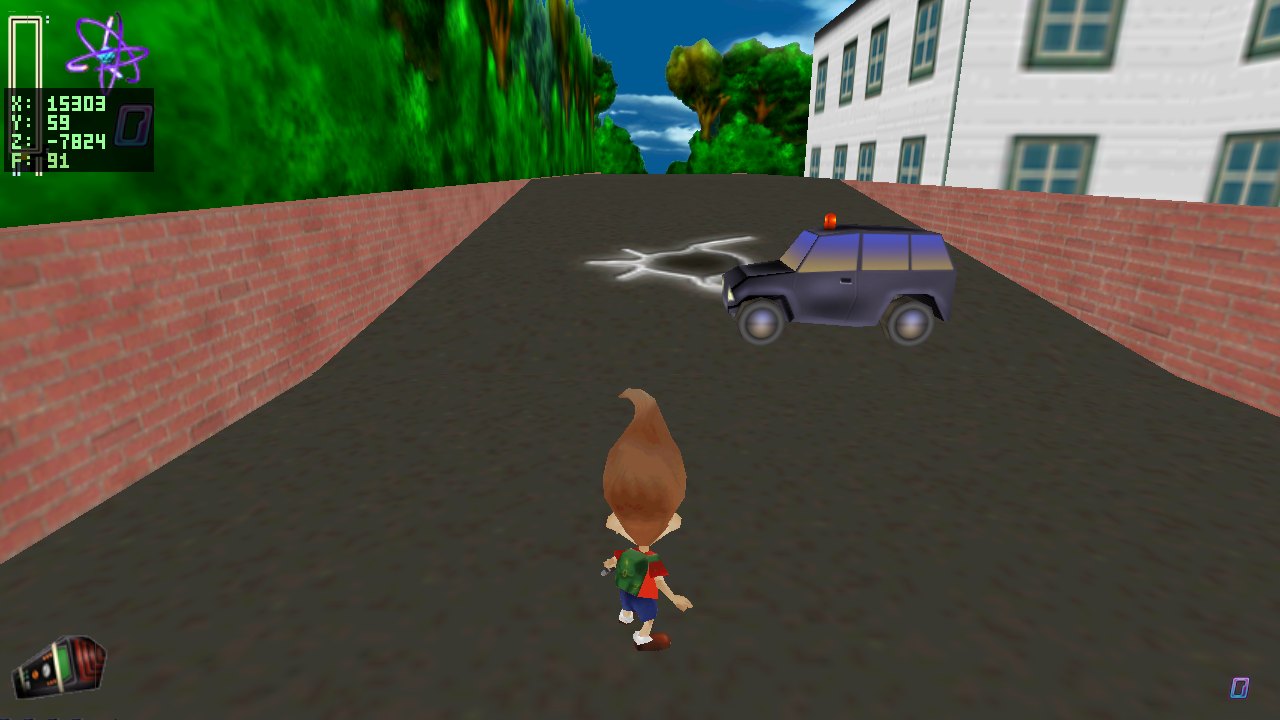

docs/decomp/C3DAIOmtObj.md: the class loads a per-instance OMT shape (OmtDatabase/OmtIndex). All three level1 rows author objects.omt index 30 — the "roadclosed" barrier — gated by RequiredLevel=1 / RemoveLevel=110–320 story-progress windows that the engine doesn't run yet. The old row drew a generic Box03 for all of them, all the time.
